TEMPERATURE - SENSORS
30.10 | Temperature sensors for the glass industry
Applications
- Dome temperature measurement in glass melting furnaces - Temperature measurement in channels, submerged single, double and triple thermocouples
- Temperature measurement in flue gases
Special features
- Sensors made with raw materials from certified suppliers - Thermocouples type S, R and B class 1 or 2 according to IEC 60584
- Very robust constructions
- The thermocouples are delivered with calibration certificates and final inspection
- All thermocouples with ceramic sheaths are delivered with special packaging
50.10 | Thermocouples of straight and angled construction
Applications
- Industrial furnace - Preheating furnaces or heat treatments
- Cement kilns and brick production
- Industrial waste incinerators
- Ceramic and porcelain industry
- Blast furnaces, gas circulating stoves
- Industrial facilities for heat generation, electrical energy, reactors
- Temperature measurement in tempering furnaces
Special features
- For high temperature applications up to 1800ºC (3272ºF) - Protective outer sheaths, made of refractory steels, metal-ceramics or ceramics and possibly with inner sheaths
- Threaded or flanged process connections, possibly with gas-tight seal
- Pods with special coatings (optional)
- Special packaging for thermocouples with ceramic sheaths
50.27 | Thermocouples for non-ferrous cast iron
Applications
- Aluminum alloy, pure aluminum electrolytic, bronze, brass, zinc, magnesium and copper foundries - Bath in electrolytic tanks
Special features
- Class 1 IEC584 standard accuracy (+/- 0.4%) - Compacted and protected thermocouple
- Hermetically sealed thermocouple
- Coating improvement
- Simple handling for assembling and disassembling the measuring lance
- High resistance to shocks and vibrations due to its solidity between thermoelement and protection
- High response speed due to small diameters in both shield and wires
50.30 | Quick coupling thermocouples
Applications
- Temperature measurement in solids, molds and welding jaws - Furnaces, special equipment
- Electric motors and generators, marine diesel engines
- Gas and steam turbines, compressors and rotating machines
- Miniature constructions for bearings or bearings
- Vibration resistant constructions
Special features
- High sensitivity miniature sensors - For temperatures from 0 to 300 ° C
- With AISI 316 stainless steel protection tube in very small diameters
- Also with 90 ° cable outlet
- Watertight constructions for special uses
50.50 | Compacted thermocouples with mineral insulation
Applications
- Furnaces, turbines, containers, ducts, equipment and machines, in all types of industry and also in laboratories or research facilities - Gaseous or liquid media such as air, gases, water, oils, etc
- Measurements under positive or negative pressure with little movement of the circulating fluid to be measured
- Temperature measurement in molds
- Temperature monitoring of the melting electrodes
Special features
- Application range from room temperature to 1300ºC - High response speed
- Flexible thermocouples that can be formed by hand over their entire length even rolled into small diameters
- Resistant to vibration and impact
- Single, double, triple thermocouples up to 16 measurement points on a single sensor
50.55 | Thermocouples for tube surfaces (Skin)
Applications
- Refineries - Chemical and petrochemical industry
- Tube heating furnaces (Coking)
- High performance boilers
- Heat exchangers
- Reactors
Special features
- Application range from ambient to 1200ºC- Compacted thermocouples with flexible mineral insulation
- High mechanical resistance
- We offer the installation and commissioning service
60.10 | Light Duty Connection Head RTDs
Applications
- Food and beverage industry - General machinery
- Refrigeration and HVAC
- Low and medium temperature stoves and equipment
Special features
- Application range from -50ºC to 500ºC - Single and Double RTD Resistor Elements
- With or without threaded process connections
- Protection pods constructed of seamless tube
60.30 | Quick coupling resistance thermometer
Applications
- Special constructions for autoclaves, packaging machines, sealers, injectors, etc. - Electric motors and generators, marine diesel engines
- Gas and steam turbines, compressors and rotating machines
- Bearings or bearings, resisting high vibrations
Special features
- For temperatures from -50 to 350ºC. - With protection tube in stainless steel AISI 316 in very small diameters
- Single or double sensor
- Also with 90º cable outlet
- Miniature constructions for highly sensitive bearings or bearings
- Vibration resistant constructions
60.50 | Compacted resistance thermometer with mineral insulation
Applications
- Chemical and petrochemical industry - Electric furnaces in the steel industry
- Monitoring in pipelines
Special features
- Application range from -200 to 600ºC - Compacted resistance thermometer with flexible mineral insulation
- High mechanical resistance to shock and vibrations
- Sensor to cable transitions for high temperatures 400 ° C
70.10 | Sensors with exchangeable measuring probe
Applications
- Refineries - Chemical and petrochemical industry
- Production and transportation of gas and oil
- Energy generation
- Construction of tanks and pipelines
Special features
- Application range from -200ºC to 1150ºC - Variety of types of process connection
- Modular design, measuring probe, thermowell, extension neck, connection head, transmitter
- Interchangeable measuring probe for both resistance thermometers and thermocouples
- Protection by thermo-sheaths constructed of welded tube or machined from solid bar
- Optional Ex version explosion protection EX d llC T6 according to IEC 60079-1
70.20 | Interchangeable measuring probes
Applications
- Refineries - Chemical and petrochemical industry
- Production and transportation of gas and oil
- Energy generation
- Construction of tanks and pipelines
Special features
- Application range from -200ºC to 1150ºC - With DIN-type system mounted on springs (spring-loaded)
- For all types of protective metal sheaths or thermo-sheaths
- Interchangeable measuring probe for both resistance thermometers and thermocouples
- Optional with vibration proof construction
70.30 | ASTM type interchangeable system temperature sensor with spring (Spring-loaded)
Applications
- Refineries - Chemical and petrochemical industry
- Production and transportation of gas and oil
- Energy generation
- Construction of tanks and pipelines
Special features
- Application range from -200ºC to 1150ºC - For all types of protective metal sheaths or thermo-sheaths
70.40 | Mechanized thermo pods
Applications
- Refineries - Chemical and petrochemical industry
- Production and transportation of gas and oil
- Energy generation
- Construction of tanks and pipelines
Special features
- Variety of types of process connection - Variety of materials and models
- Calculation of mechanical stress
- Special designs
80.10 | Thermocouples and multiple resistance thermometers for temperature profiles
Applications
- Refineries - Chemical and petrochemical industry
Special features
- Compact design with independent measuring points. More than 30 points within an 8mm (0.32 ”) diameter insertion tube - Low cost per measurement point
- Replacement of individual elements on-site and without stopping the process
- A single process connection for more than 30 independent measuring points
- A complete solution for temperature measurement
99.30 | Thermocouples
We consider the thermoelement as the main component of a thermocoupleThe thermoelements specified here are spare parts for straight and angled construction thermocouples of Data Sheet No. 50.10, according to DIN 43733 for temperatures up to 1600ºC that respond in their electromotive force (EMF mV / ºC) to the standard IEC 60584 part 1. In In some cases these thermoelements can also be used for direct temperature measurement without a protective sheath
3 Categories
- Basic metal wire thermoelements with insulators. DS No. 99.30 2/5 - Precious metal wire thermocouples with insulators in a single piece. DS No. 99.30 3/5
- Compacted thermoelements with mineral insulation. DS No. 99.30 4/5 and 5/5
99.45 | Cable for inside lances and connector
Applications
- Steelworks - Metal melting
Special features
- National manufacturing - Custom lengths according to need
- Minimum electrical insulation 2000 MOhm at 500 V
TEMPERATURE - INSTRUMENTATION
Temperature transmitters
With a wide range of products in the area of transmitters, we offer high-quality devices for temperature acquisition (through resistance thermometer or thermocouple).
Temperature is reliably transmitted and monitored for out of range. Thanks to a defined output signal, downstream systems can be activated in the event of a malfunction.
Temperature is reliably transmitted and monitored for out of range. Thanks to a defined output signal, downstream systems can be activated in the event of a malfunction.
Process variable controllers
A precisely controlled temperature is essential for many production processes. We offer the right controller for every application Whether it is a single channel, multichannel or program controller, ratio controller, cascade or continuous, here you can find a wide range of different electronic temperature controllers, from compact controllers to automation system.
Process variable indicators
Devices that can be used universally in various DIN formats to display process variables. The basic version includes a minimum / maximum value function, a hold function, a tare function, limit value monitoring functions, digital control signals, timer functions and a service counter.
Portable indicators
Portable digital temperature display devices. They are used in conjunction with thermocouples or resistance thermometers to measure the temperature of surfaces, liquids, molten metals and plastic materials.
Registrars
JUMO LogoScreen devices are a must when it comes to easily acquiring, archiving and evaluating measured values that require tamper-proof verification. The range of paperless recorders can be used in a variety of ways in almost all industries due to its numerous approvals.
Infrared thermometers
The different DIAS series are differentiated by their temperature ranges, interfaces, housings and the therefore related purpose. Manifold accessories allows individual adjustment to the application and the integration in system solutions.- High stability over time and precision
- Working range of 0 to 2500°C
- Range 0…1000°C laser alignment, other models with vision through the lens
- Fixed FOV: distances 500…600 mm / target: 3…8.5 mm
- SSE/ETF Compensation
- NETD excellent system thermal sensitivity
Infrared line cameras
PYROLINE stands for high-quality and long-lasting fixed infrared line cameras for non-contact temperature measurement of temperature profiles in industry and research. We offer you different temperature ranges and spectral ranges for the optimal solution of your measurement problem. Additionally there are various housing variants and lenses for different purposes. All DIAS PYROLINE infrared line cameras are developed and manufactured in Germany. They are suitable for industrial continuous operation. In addition we obstruct our cameras in manifold system solutions.
Dataloggers
Wide range of data loggers for measuring temperature, pressure and humidity in validation and routine checks, as well as for cold chain and process monitoring.The range extends from wireless dataloggers for real-time monitoring, through mini dataloggers for tight spaces to multi-channel dataloggers.
Thermal imaging Cameras
Thermal imaging cameras are used for non-contact temperature measurement and for the detection of twodimensional temperature distributions with high thermal resolution on stationary and moving measurement objects. We have introduced the longtime experience in the field of thermography into our thermal imaging camera series PYROVIEW.
The devices are durable, robust and suitable for industrial continuous operation. Our infrared cameras are used in process control and monitoring, quality control, early fire detection, as well as for measurements in research and development.
HUMIDITY
Portable Instruments
It is a versatile portable instrument, capable of making specific measurements and recording of relative humidity, temperature and psychrometric parameters. It also has a graphic display and up to 4 values, freely configurable visual and audible alarms in each value and more.
Dataloggers
The humidity, dew point and temperature data logger has two additional external probe inputs. More probes can be connected to the logger using a docking station, as well as up to two external on / off contacts, for example a door contact.
Transmitters
Transmitters designed for fixed installation in industrial applications where conditions are within the range of 0 to 100% RH and -100 to 150 ° C. The HF7 probe can withstand temperatures up to 200 ° C. Equipped with metal housing and probe, it can be installed in the toughest industrial environments.
Weather Stations
Radiation shields with natural ventilation are used where natural ventilation (wind) provides sufficient air flow, for example, measurement stations in the mountains.
Water activity
For measurements of water activity in bulk materials such as flour, grains, spices, etc. For solid and pasty products such as meat, sausages, as well as oils, fats, etc.
Calibration Products
A wide variety of solicitations to carry out verifications and calibrations of equipment to measure humidity, you can also consult us for the calibration service in our laboratory or in the field.
Monitoring systems
The Rotronic Monitoring System is a modular system of hardware and software elements. It guarantees maximum flexibility at the time of installation and guarantees excellent data availability during operation. The data loggers record all measurements from Rotronic and third-party sensors and transmit them to the database. Stores all the information and makes it available to all users, regardless of whether they access the database by PC, Mac, tablet or smartphone.

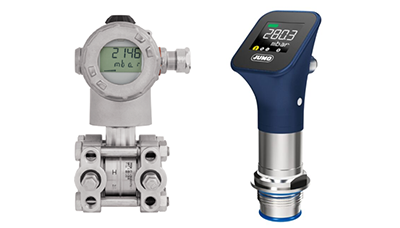

PRESSURE
Temperature transmitters
With a wide range of transmitters, JUMO offers high-quality pressure measuring devices for various measuring ranges and media. Values are reliably transmitted and monitored for out of range. CANopen, HART and I / O link communication interfaces are available. Explosion proof equipment, SIL and high hygiene requirements are also guaranteed.
METROLOGY
100.10 | SPR-1200 Calibration System
The SPR-1200 calibration system is a high stability temperature generator furnace, used for the calibration and certification of temperature sensors such as thermocouples, resistance thermometers, infrared thermometers and others by the comparison method using a reference standard sensor.
100.40 | Standard thermocouple
As a complement to the calibration systems, we manufacture special high-stability thermocouples to be used as a reference standard in calibration methods by comparison.
100.45 | Standard resistance thermometer
As a complement to the calibration systems, thermoresistances of special construction and high stability are used to be used as a reference standard in calibration methods by comparison.
100.50 | Reference cold joint
Complementing the calibration systems are specially constructed accessories to be used in conjunction with reference standard thermocouples in comparison calibration methods to minimize the error introduced by cold junction compensation.
Temperature calibration furnaces
The temperature calibrators are compact and robust, easy to transport, simple to use and offer all the features required for the specific test.- They can cover the range of -55 ° C to 1300 ° C.
- Allow direct calibration.
- Contact based immersion or surface temperature sensors.
- Sensors with special shapes and sizes.
- Non-contact infrared instruments and thermal imaging cameras.
Multifunction calibrators
Multifunction process calibrators combine the functions of multiple devices in one instrument. They are designed for easy generation and measurement of temperature, pressure, frequency and electrical signals.
Pressure gauges
Complete pressure calibration solutions for a wide range of applications, both in the laboratory and in the field. All of our products are designed to save time and eliminate the assumptions that often accompany critical pressure testing, maintenance and repair operations.
Blackbodies
- Used for calibration and testing of radiation thermometers and infrared cameras - They are blackbody reference sources
- High stability over time and precision
- Working range of -15 to 1500°C
- Radiant cavity with emissivity between 0.97…0.99 depending on the model
- Temperature stability between 0.1…0.5°K depending on the model
- Cavity opening of 30…60 mm depending on the model
- Portable and fixed equipment
- Configurable and fixed temperatures
- It is ideal to use PYROSPOT transfer thermometers together with these devices
DATALOGGERS
