Lethality factor F0 calculated with the Logoscreen 601/700 recorder
Description
The JUMO LOGOSCREEN 601/700 recorder allows the calculation of the lethality factor F0. It combines intuitive operation with outstanding technical performance, making it the ideal solution for acquiring, monitoring, and documenting process data in demanding industrial environments.
Applications
- Pharmaceuticals - Laboratories
- Food industry
- Autoclave manufacturers
Special features
- Calculation of the lethality factor F0 (in conjunction with the math/logic module) - RS232/485 interface
- Integrated web server for online viewing
- Batch log report
Relevant technical features:
- 100% silicone-free, meeting the highest industrial standards
- Inputs and outputs:
- Up to 18 universal analog measurement inputs
- Up to 3 analog outputs
- Up to 18 digital inputs and 24 individually switchable digital I/Os
- Up to 7 relay outputs
- Up to 8 high-speed counter inputs (12.5 kHz)
- Interface: Up to 120 external analog inputs, 120 digital inputs, and 74 external text inputs (64 batch, 10 event)
- Internal channels (standard): 30 counters/integrators 10 group reports (min/max/average)
- Internal channels (optional): 20 math channels, 20 logic channels, up to 8 high-speed counters, ST code with 40 input variables and 40 output variables each
- Recording capacity: 60 analog signals, 60 digital signals, 120 alarm signals, 30 counters, and up to 10 measurement groups
Additional features:
- IQ/OQ documentation according to 706521/30 DE-EN
- PROFINET IO interface
- User programming via ST
- Data logging in compliance with FDA 21 CFR Part 11
- Manipulation detection with digital certificate
- AMS2750 and CQI-9
- Math and logic module
Phoenix TM Dataloggers and Thermal Barriers
Description
Dataloggers: PhoenixTM dataloggers are designed for use in demanding industrial environments. The electronics are protected by a robust, water-resistant aluminum housing. The design incorporates signal noise reduction and cold junction compensation to ensure accurate and reliable data. They can be offered with an RF telemetry option to transmit temperature data from inside the oven, enabling real-time data analysis. This allows for instant processing decisions, saving time and energy, and potentially reducing rejects. For convenience and future reference, a copy of the original calibration certificate and calibration data are stored in the data logger and can be accessed when needed.
Thermal barriers:
PhoenixTM develops thermal barriers for specific applications. For example, coating processes require thermal barriers to be free of all traces of silicone. In the heat treatment industry, where thermal barriers are subject to high heating and cooling rates, the primary consideration is minimizing thermal barrier distortion. In other processes, such as heat treating aluminum wheels, thermal barriers must withstand full immersion in high-temperature water. In applications such as gas-sealed carburizing, PhoenixTM has developed a unique thermal barrier that allows the system design to safely pass not only through the furnace but also through integrated oil quenching, enabling monitoring of the entire heat treatment process.
Applications
- Painting and powder coating processes up to 300°C - For all your cooking and cooling monitoring needs
- Extreme thermal control for processes above 800°C
- Solutions for demanding ceramic processes
- Solutions for heat treatment of aluminum
- Solutions for preheating furnaces for steel slabs and billets
Special features
- Designed to operate in moderate to high temperature conditions - High thermal performance in a compact design
- Easy handling, ideal for integration into automated production lines
- Phase change technology for efficient heat dissipation
- 100% silicone-free, meeting the highest industrial standards
- Combines advanced technology and rugged materials to ensure thermal monitoring in extreme processes, without compromising data integrity
Portable visual camera for furnace inspection
Description
Portable digital camera with additional illumination function that allows viewing even in complete darkness. It allows obtaining high-resolution Ultra HD images. For atmospheres with temperatures up to 800 °C, also available for applications up to 1,800 °C and direct view of the flame.
Applications
- Check the internal integrity of the ovens before and after operations - Identify obstructions, corrosion, cracks or deformations in the internal walls
- Evaluate the condition of refractory coatings
- Examine tubes and boilers for coke deposits, corrosion and erosion
- Predictive and preventive maintenance: reducing downtime by identifying problems early and allowing the useful life of the equipment to be extended
Special features
- Take photos in 13MP Ultra HD resolution (both MJPEG and BMP) - High quality of details
- 250W cooled lighting with 24V DC power supply
- White balance (manual and automatic)
- Autofocus, continuous focus and manual focus
- Effects: normal, black and white, grayscale, negative and outline
- Plug & Play (compatible con UVC, no se requieren controladores)
- Various viewing possibilities available: straight (0°), 30°, 45°, 70°, side (90°), with your back to your own wall (120°) and combinations of these.
- Compatible with operating systems: Windows 10, Windows 8, Windows 7
- Available lengths from 900 mm to 2500 mm. (standard 1200mm)
- The system includes the portable probe with the media control unit and power cables and cooling tubes.
Pyroinc
Description
Special and very robust infrared cameras that are used for the measurement of high temperatures between 400 °C and 1800 °C.The PYROINC cameras have a motorfocus borescope lens with protection window. The camera and the borescope lens are installed in a watercooled stainless steel probe cooling jacket. The camera version PYROINC endoscope have a probe cooling jacket with a very small diameter. They can be cooled with air and water.
Applications
- Temperature measurement of the molten glass and inspection of the lining in glass melting furnaces - Controlling the temperature during hardening and tempering of steel in a walking beam furnace
- Online temperature monitoring of the sintering zone in cement rotary kilns
- Temperature measurement through flames for burner control
- Detection of excessive slag formation in combustion chambers in the chemical industry and in power plants
- Use in recovery boilers in pulp and paper industry
- Condition monitoring in aluminum and zinc recycling
Special features
- One large measuring temperature range - Industrial continuous operation (service life 2-10 years)
- Automatic retraction system
- Borescope lens with motor focus
- Endoscope versions with small probe diameter
- Special infrared filters for application ranges
- Probe lens jacket with water or air cooling
- Patented air purging system
Water activity
Description
Measure for the energy status of the water in a system, specifies the relationship between the water vapor pressure of a product and the saturation pressure of pure water at the same temperature.
It is stated in “aw” in the range 0…1 aw and is an important indicator for product quality in the industrial production of, for example, plastics.
The determination of water activity is also very important in the food, tobacco, pharmaceutical and cosmetics industries.
Water activity should not be confused with the water content / the “chemically bound” water / of a product.
Applications
Water activity plays an important role for product quality in various fields, including: - Food industry
- Pharmaceutical industry
- Tobacco industry
- Seed storage
Rotronic offers a complete range of products for measurement of water activity. The instruments are accurate and boast high efficiency, compatibility and simple calibration. Combine the measurement heads, insertion probes, benchtop display units and handheld instruments as you need:
AwTherm: Temperature-stabilized measurement, FDA 21 CFR part 11 compliant
Features - Accuracy: ±0.005 aw, ±0.1 K
- Temperature control range: 0...60 °C
- High temperature stability: ±0.01 °C / min
- Measurement repeatability: 0.002 aw
- Variable sample container sizes: 14 / 40 mm
- Interchangeable reference probes for cleaning or calibration
- Aw Quick function for fast measurement results (typically 4-5 minutes after reaching a stable temperature)
- Aw Equilibrium method available
Hygrolab: Laboratory application, FDA 21 CFR part 11 compliant
Features - 4-channel benchtop display unit for measurement of water activity, relative humidity and temperature
- AW Quick function for fast measurement results (typically 4-5 minutes)
- Updates with functional enhancements
- 4 USB ports (e.g. for mouse and keyboard)
- Remote access (by PC or tablet)
- Automatically generated measurement report after every measurement
AwEasy: Completely portable
Features - Long battery life with wireless charging
- With Bluetooth for cell phone connection
- Application for Android and IOS. They allow configuration, generation of reports
- The reliable AW Quick mode for quick results (typical 4 - 5 min)
HC2-AW-USB-SW-1
Features - In conjunction with the software, it allows you to connect to a PC, allowing the connection of several devices simultaneously.
- Aw Quick function for quick results, typically 4-5 minutes
Accessories
Features - PS-14/40 Plastic sample holder containers made of Crystal 1540 Polystyrene, in compliance with pharmaceutical and food standards. They ensure optimal utilization of the measurement volume
- WP-14/40 Container holder base that ensures optimal thermal stability for the product during measurement
Humidity standards for calibration
Features - 5-packs containing an easy-to-use unsaturated saline solution
- Supplied with a certificate accredited by the SCS (Swiss Calibration Services) that guarantees the traceability and precision of the humidity standards used for calibration purposes
- Available values 0,5%hr, 10%hr, 11%hr, 20%hr, 35%hr, 50%hr, 60%hr, 65%hr, 75%hr, 80%hr, 95%hr

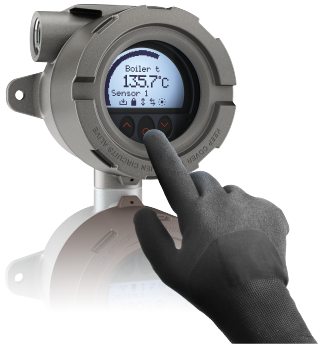

Transmitters PR 7501 y PR5337
Description
Format B temperature transmitter (5337D) and format B with local indication display and housing (7501) suitable for mounting in hazardous gas and dust area with HART 7 communication protocol
Applications
For constant monitoring of temperature and other variables in common and dangerous areas, with high fidelity data transmission.
Special features
- Input for resistance thermometer, thermocouple, Ohm and mV. - 2 analog inputs to measure difference or average for two RTD or TC input sensors.
- HART protocol version selectable between HART 5 or HART 7.
- Hardware suitable for use in SIL applications.
- To be mounted in classified areas. ATEX, IEC Ex, SIL, DNV Marine, FM, CSA, INMETRO and EAC Ex approval.
- Illuminated screen and optical buttons for operation in the field (7501) that allows its configuration without opening the cover.
- Accessory for mounting on a 2” pipe (7501) or directly on the temperature sensor.
8-channel data acquisition equipment
Description
Data acquisition equipment suitable for accompanying the product during the process, allows verifying point temperatures, observing temperature profiles, analyzing data, optimizing control and the process.
Applications
Paint booths, continuous heat treatment furnaces, food cooking, sterilization processes, ceramic furnaces, drying furnaces, etc.
Special features
Withstands high temperatures, suitable for different types of sensors, calibration certificates at critical points in the process, customized sensors.
Non-contact temperature measurement - TP31-IR
Description
With the TP31-IR, surface temperatures can be determined quickly and without contact. Thanks to an adjustable emissivity level and a dual-beam laser pointer to define the target, the surfaces of a wide range of materials can be precisely measured.
Applications
Used to measure the temperature of most objects, including human and animal skin.
Special features
- Two beam laser pointer - Automatic data retention
- Custom calibration for example at 38 ° C with e: 1
- Automatic range selection and display resolution of 0.1 ° C or 0.1 ° F
